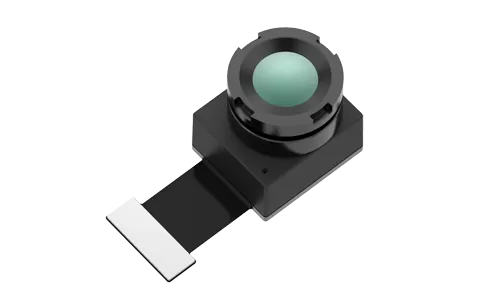

The TIMO212 is an uncooled infrared miniature module. It features a self-developed 256×192/12μm wafer-level detector, along with a wafer-level optical lens and micro-electromagnetic valve shutter, enabling precise temperature data and heat distribution capture for specific target areas. The product is engineered to accommodate integration across diverse sectors including mobile terminals, instruments and meters, and the Internet of Things (IoT). It offers exceptional miniaturization and ultra-low power consumption, while supporting multiple field-of-view lens options to meet varying requirements for viewing angles and imaging quality across different application scenarios. Its universal control interface and intelligent power management scheme provide higher integration efficiency and lower overall cost for OEMs, accelerating the deployment of innovative infrared applications.
Wafer-level packaged detector + wafer-level optics + micro-electromagnetic valve shutter
The smallest infrared thermal module, enabling basic thermal imaging functionality with maximum cost efficiency
Compact size, lightweight, and low power consumption, ideal for integration into miniature devices
Multiple lens options available, including wide-angle and telephoto, to meet diverse application needs
High-precision temperature measurement with accuracy up to ±2°C; supports both regional and full-frame temperature monitoring
Supports DVP image interface, compatible with various embedded platforms
Compliant with RoHS 2.0 environmental standards
| Model | TIMO212 | |||
| Resolution | 256×192 | |||
| Pixel Size | 12μm | |||
| Spectral Response | 8-14μm | |||
| Focus Mode | Focus Free | |||
| Lens(HFOV/FL) | 17.5°/ 10mm | 25°/ 7mm | 56°/ 3.2mm | 90°/ 2.1mm |
| Weight(g) | 5.1±0.4 | 4.4±0.4 | 2±0.2 | 4.8±0.4 |
| Size (mm, without FPC) | 16×14×18 | 16×14×14.6 | 14×12×9.8 | 16×14×15.6 |
| Number of PINs | 40PIN | |||
| Output Data | 14bit Raw | |||
| Frame Rate | Thermography: 25Hz, Imaging: ≤50Hz | |||
| Temperature Measurement | ||||
| Temperature Measurement Range | -20℃~+550℃(-20℃~+150℃ | +100℃~550℃) | |||
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% | |||
| Environmental Adaptability & Certification | ||||
| Operating Temperature | -40℃~+70℃ | |||
| Humidity | 5%~85% | |||
| Storage Temperature | -45℃~+85℃ | |||
| Certification | RoHS 2.0 / Reach | |||
