The PLUG617 infrared thermal camera core is built on advanced 17 μm VOx microbolometer technology and integrates a 640×512 resolution detector, delivering precise thermal visualization with crisp, high-contrast imaging.
Designed as a complete imaging core, PLUG617 combines a high-performance uncooled sensor, a full range of optical components, signal processing circuitry, and proprietary image enhancement algorithms. The result is consistently clear image output and reliable performance across diverse environments.
A wide selection of infrared lenses is available to support different application scenarios, including fixed-focus athermal lenses (7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm,), motorized lenses (75 mm/100 mm/150 mm), and continuous zoom lenses (30–150 mm), enabling flexible system design for both short- and long-range detection.

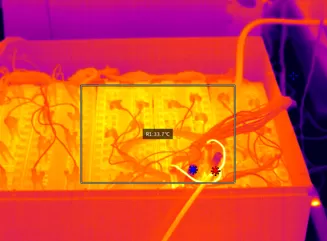

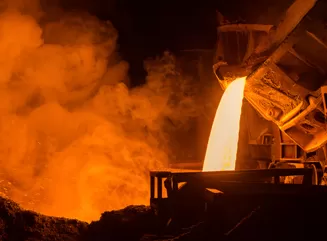

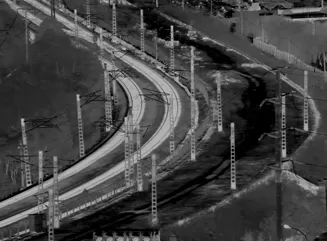

Engineered for seamless integration, PLUG617 supports multiple image output interfaces (USB, VPC, Camera Link, GigE), along with serial communication and customizable lens configurations. Its adaptable architecture makes it ideal for a broad range of applications, including security and surveillance, firefighting, industrial monitoring, and more.
Standard 50pin interface, various expansion boards available
Standard optical interfaces; a full set of infrared lenses
Perfect SDK database, ongoing update and optimization
High thermal sensitivity, NETD＜30mK
IDE/AGC intelligent algorithm
USB3.0/VPC/Cameralink/HDMI/Gig-E network port
| Model | PLUG617 | |
| IR Detector Performance | ||
| Resolution | 640×512 | |
| Pixel Size | 17μm | |
| Spectral Range | 8~14μm | |
| Typical NETD | ＜30mK | |
| Image Processing | ||
| Frame Rate | 9Hz/25Hz/30Hz/50Hz | |
| Start-up Time | 10s | |
| Analog Video | PAL/NTSC | |
| Digital Video | BT.656/LVDS/DVP | |
| Expansion Component | VPC/USB3.0/GigE/Cameralink | |
| Dimming Mode | Linear/Histogram/Mixed | |
| Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 | |
| Image Display | Black Hot/White Hot/Pseudo Color | |
| Image Direction | Horizontally/Vertically/Diagonally Flip | |
| Image Algorithm | Non-uniformity Correction (NUC) Auto Gain Control (AGC) Image Detail Enhancement (IDE) | |
| Electrical Specification | ||
| Standard External Interface | 50pin_HRS Interface | |
| Communication Mode | RS232-TTL, 115200bps | |
| Supply Voltage | 4~6V | |
| Typical Power Consumption | 1.4W | |
| Physical Characteristics | ||
| Size (mm) | 44.5×45.95×37.3 | |
| Weight | 90±3g | |
| Environmental Adaptability | ||
| Operating Temperature | -40°C~+70°C | |
| Storage Temperature | -45°C~+85°C | |
| Humidity | 5%~95%, non-condensing | |
| Vibration | Random Vibration 5.35grms, 3-axis | |
| Shock | Half-sine Wave, 40g/11ms, 3-axis 6-direction | |
| Optics | ||
| Optional Lens | Fixed Focus Athermal: 7.5/13/19/25/35/50/60/100mm Motorized Lens: 75/100/150mm Continuous Zoom: 30~150mm | |
