SensorMicro Launches the iTL612 PLUS: A Next-Generation 640×512 Thermal Camera Core for Clearer Imaging and Easier Integration

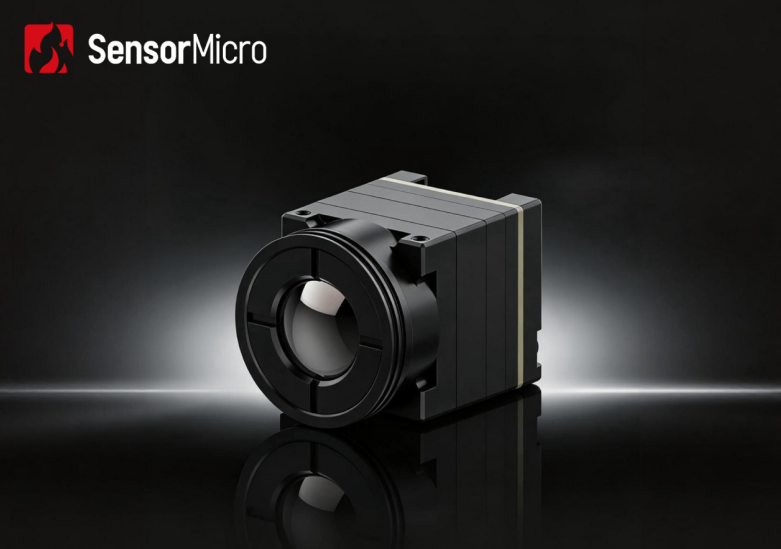

SensorMicro announced the launch of the iTL612 PLUS, the latest generation of its compact 640×512 uncooled infrared thermal camera core. Built around the company's ApexCore 12μm infrared detector, the new module delivers significant improvements in image quality while maintaining the ultra-small size, lightweight design, and low power consumption that OEM manufacturers expect from the iTL family.

Designed for compact thermal imaging systems, the iTL612 PLUS infrared camera core combines advanced image processing, germanium-free optics, flexible lens options, and multiple digital interfaces to simplify integration across industrial inspection, equipment monitoring, wildfire prevention, and long-range observation applications.

Sharper Thermal Images Powered by a New Detector and Advanced Image Processing

At the heart of the iTL612 PLUS is SensorMicro's 640×512/12μm ApexCore infrared detector, delivering more than 40% improvement in imaging performance compared with the previous generation.

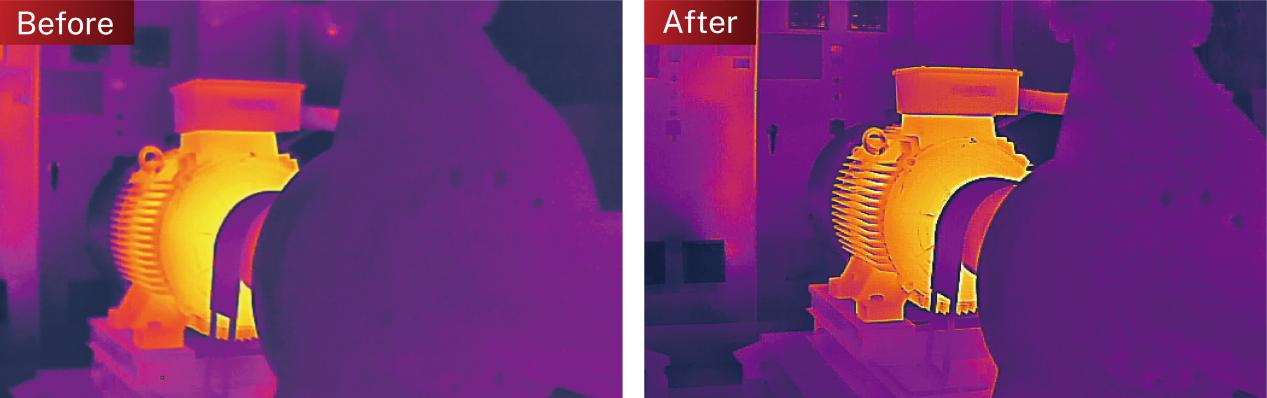

The detector's low-noise architecture works together with advanced image enhancement technologies—including NUC, 3D noise reduction, 2D filtering, dynamic range compression (DRC), and edge enhancement (EE)—to produce cleaner thermal images with improved contrast, finer detail, and sharper object boundaries.

The result is more reliable target recognition in challenging environments, whether observing distant objects, identifying subtle temperature differences, or operating under low thermal contrast conditions.

For thermography applications, the iTL612 PLUS also integrates a high-performance signal processing platform and precision temperature measurement algorithms. It supports measurement from -20°C to 550°C with an accuracy of ±2°C or ±2%, while extended temperature ranges are available for customized applications.

Germanium-free Optics Expand Supply Flexibility Without Compromising Performance

The iTL612 PLUS is equipped with a fully chalcogenide lens solution, eliminating dependence on germanium while maintaining excellent infrared optical performance.

Compared with traditional germanium optics, chalcogenide materials offer lower weight and greater supply flexibility, helping OEM manufacturers reduce system mass while improving long-term procurement resilience.

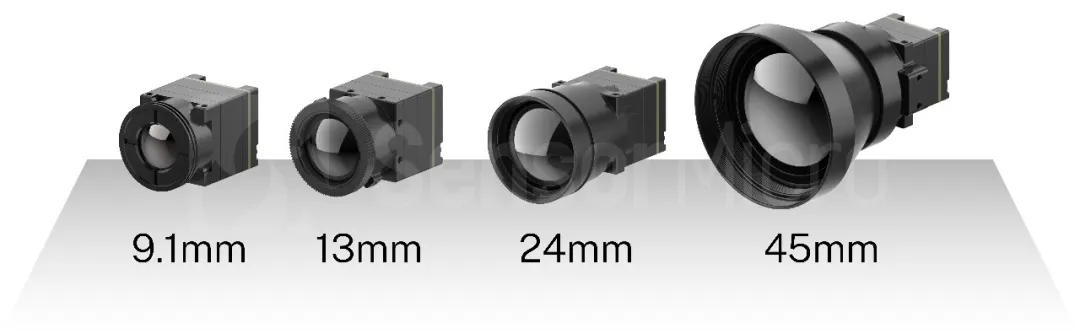

To support a wide variety of application requirements, the iTL612 PLUS is available with 9.1mm, 13mm, 24mm, and 45mm lens configurations, covering horizontal fields of view from 48.3° to 9.6°. This allows system designers to optimize imaging performance for both wide-area monitoring and long-distance observation without redesigning the thermal core.

Compact Size and Low Power Consumption Simplify System Integration

Compact thermal imaging systems continue to demand smaller, lighter, and more energy-efficient components.

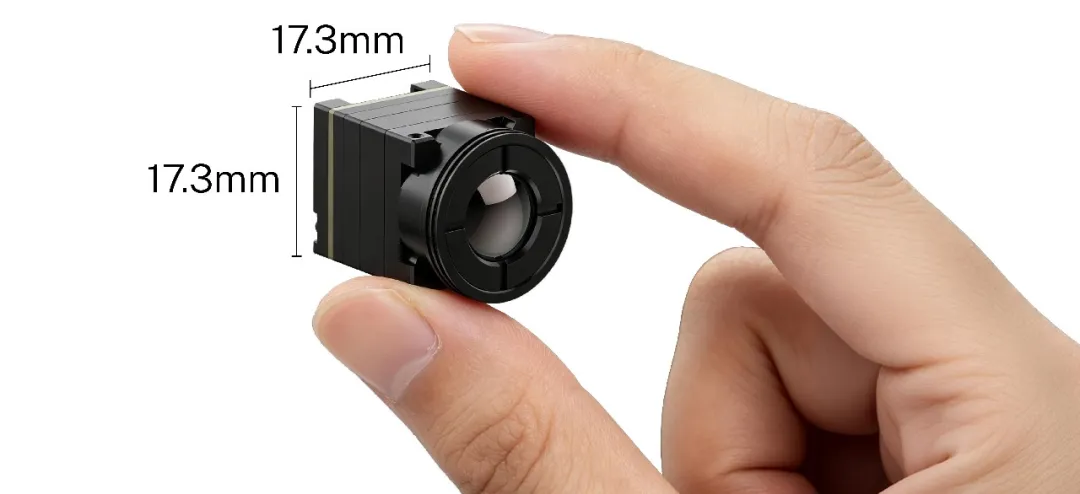

The iTL612 PLUS measures only 17.3×17.3×25.4mm. With the 9.1mm lens installed, the complete camera core weighs just 13.7g, while typical power consumption is as low as 0.5W.

This combination of compact dimensions and low power enables easier integration into space-constrained platforms, portable devices, and lightweight sensing equipment where every gram and every watt matter.

Designed for Fast OEM Development

To accelerate product development, the iTL612 PLUS supports multiple industry-standard video interfaces, including MIPI, USB 2.0, LVDS, and BT.656, making it compatible with a wide range of embedded hardware platforms.

The standardized interfaces reduce development complexity and help OEM manufacturers shorten integration cycles while maintaining flexibility across different system architectures.

Enabling the Next Generation of Compact Thermal Imaging Systems

As thermal imaging continues to expand into smaller and more intelligent devices, OEM developers require imaging modules that deliver high performance without increasing system size or complexity.

The iTL612 PLUS addresses this challenge by combining enhanced imaging capability, flexible optical configurations, ultra-low SWaP characteristics, and streamlined integration in a single thermal camera core.

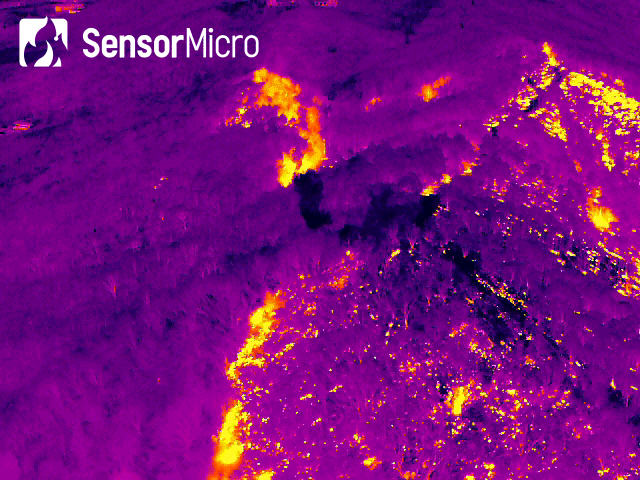

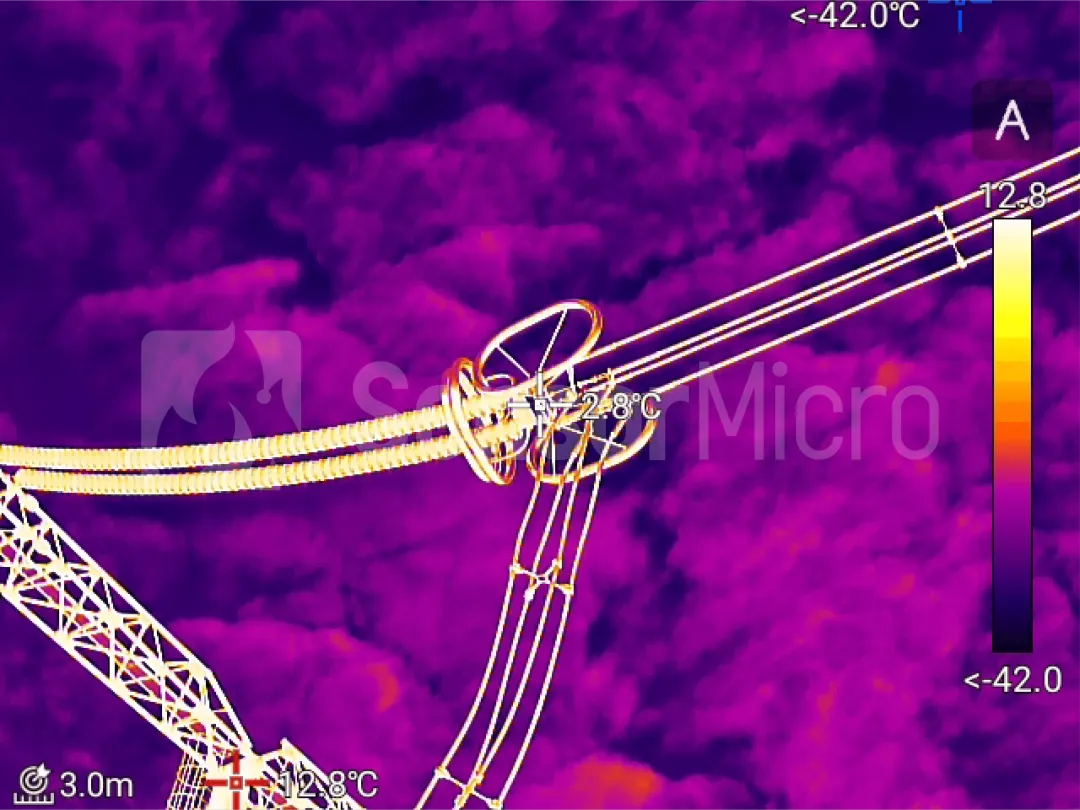

The module is well suited for applications including industrial inspection, condition monitoring, wildfire prevention, infrastructure monitoring, and other thermal imaging systems requiring reliable long-range sensing in compact form factors.

With the introduction of the iTL612 PLUS, SensorMicro continues to expand its portfolio of high-performance infrared camera cores, providing OEM partners with greater flexibility to develop the next generation of lightweight thermal imaging products.
